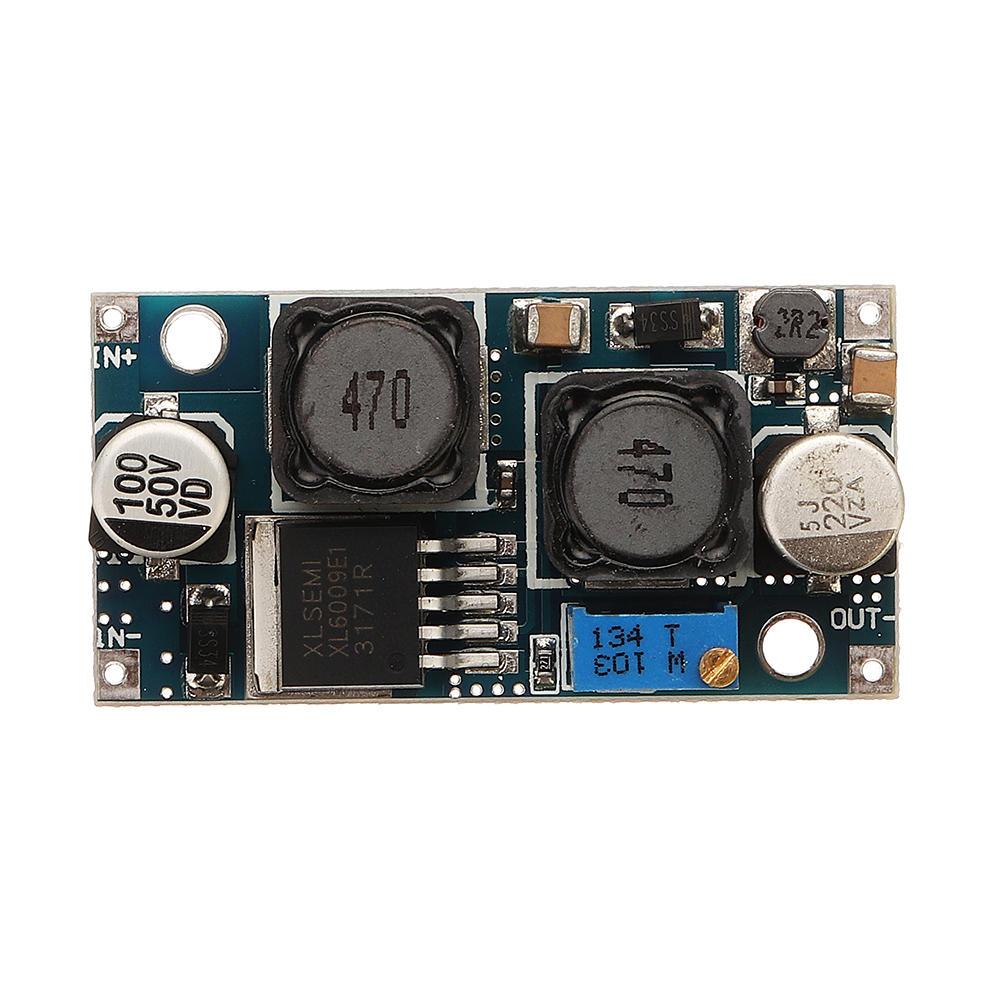

Type: Switching type DC-DC Step Up Boost Module;
Model : XL6009
Input voltage: 3-34 V.
Output voltage: continuous adjustable (4-35 V).
Output current: 2.5 A (MAX).
Input current: 3 A (MAX).
Operating temperature:-40℃~+85℃
Input methods: IN + input is level, IN-input negative.
Output way: OUT + output is level, OUT-output negative.
Adjustment: first correct by input power supply (3-34 V, between) again using a multimeter to monitoring output voltage and the potentiometer (turn step-down, in reverse chronological turn boost).
Output voltage: 4-35 V continuous adjustable (the construction no-load commissioning) our default shipping voltage 12 V if you require other voltage can tune ourselves.
Dimensions: 45x 20x14mm

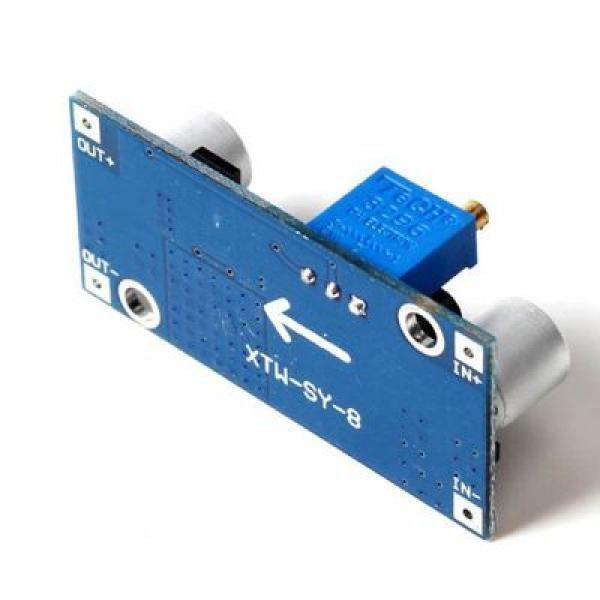

Pins:
IN+ input positive
IN- input negative!
OUT+ output positive
OUT- output negative
Test comparison sample reference:
Input 3V Output 12V 0.4A 4.8W
Input 5V Output 12V 0.8A 9.6W
Input 7.4V Output 12V 1.5A 18W
Input 12V Output 15V 2A 30W
Input 12V Output 16V 2A 32W
Input 12V Output 18V 1.6A 28.8W
Input 12V Output 19V 1.5A 28.5W
Input 12V Output 24V 1 A 24W
